Zinc-Aluminum (Galfan or Bezinal) 358 High Security Mesh with Channel Posts, Rails and Concertina Razor Barbed Tape

We supply the following standard 358 high security mesh made of Zinc-Aluminum (Galfan or Bezinal) wire. Fitted with channel posts, rails and short barb concertina wire. Also similar standard items for export. 358 high security mesh is also known as 358 secure mesh, secure net or securi mesh.

Black Powder Coated Steel Wire Mesh High Security Fencing Sheet

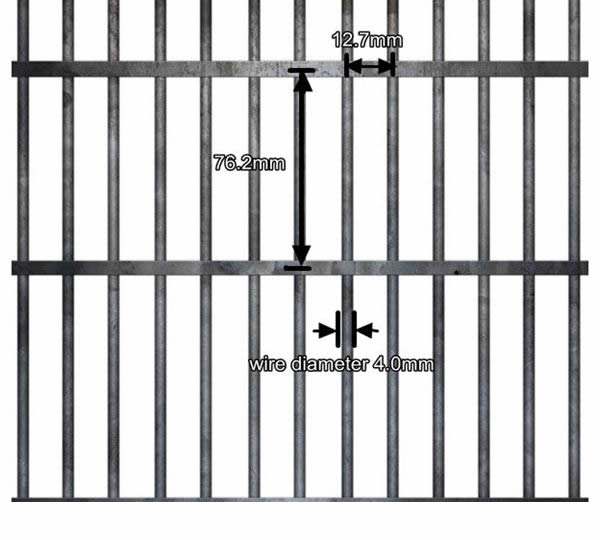

358 Secure Mesh (75x16mm aperture)

Specification
Wire: Ø 4mm Zinc-Alu drawn wire (Galfan or Bezinal); wire diameter tolerance: +/- 0.08mm

Transversal (horizontal) wires: 13mm centres
Longitudinal (vertical wires): 75mm centres
Aperture: 75mm x 16mm
Wire resistance welded at each intersection.
Tensile Strength: 500-625 MPA.
Zinc Coating Mass: 265 gm2

Panels size:
2100mm height x 2404mm length sheet
2384mm height x 2404mm length sheet
2700mm height x 2404mm length sheet

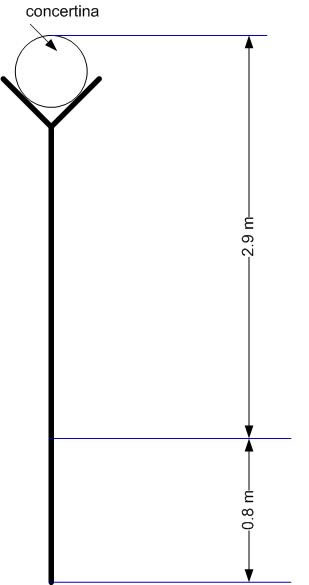

Y-Post for Concertina Wire Support

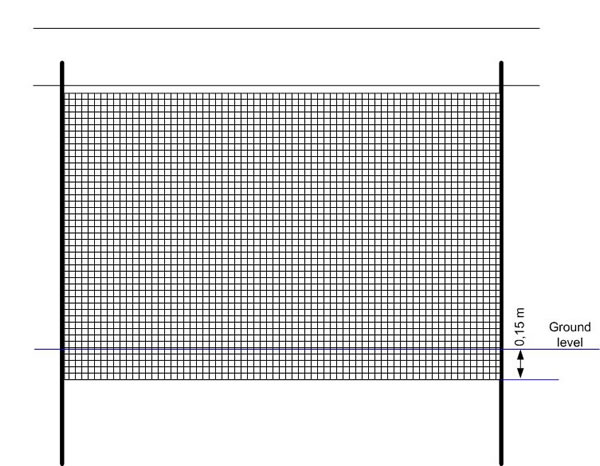

Square Opening Mesh Panels

Uneven Channel Posts:

Size 50x115x30x4mm, 5.6kg/M (3000mm long), 350MPa, channel post with section depth 115mm; Flange width 51 & 30mm; Material thickness 4mm;
Size 50x115x30x4mm, 5.6kg/M (3300mm long), 350MPa, channel post section depth 115mm; Flange width 51 & 30mm; Material thickness 4mm;
Size 50x115x30x4mm, 5.6kg/M (3600mm long), 350MPa, channel post section depth 115mm; Flange width 51 & 30mm; Material thickness 4mm;
Size 50x115x30x4mm, 5.6kg/M (3900mm long), 350MPa, channel post with section depth 115mm; Flange width 51 & 30mm; Material thickness 4mm.

I-beam Fence Posts:
100UC x ~14.8kg/M (3000mm long): Section depth 97mm; Flange width 99mm; Thickness 7mm
100UC x ~14.8kg/M (3300mm long): Section depth 97mm; Flange width 99mm; Thickness 7mm
100UC x ~14.8kg/M (3600mm long) : Section depth 97mm; Flange width 99mm; Thickness 7mm
100UC x ~14.8kg/M (3900mm long) :Section depth 97mm; Flange width 99mm; Thickness 7mm

Rails:
50x50x4mm (2411mm long) 250MPa with 8 x 9mm slots

Other Fittings:
M12 x 30 Cup Head Bolt 8.8 Grade
M12 Shear Nut Class 8
M12 washer
M8 x 40 Cup Head Bolt 8.8 Grade
M8 x 30 Cup Head Bolt 8.8 Grade
M8 Shear Nut Class 8
M8 washer

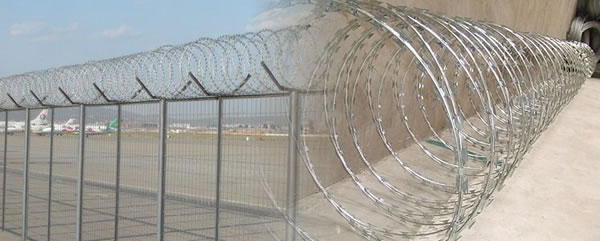

550mm Concertina razor tape

Concertina Wire with Short Razor Type Barbs

Together with products, we will provide following technical informations and certificate of testing of wire materials, posts, according to international standards.

Testing of Wire Materials:
Wire
Zinc/ Aluminium coating mass
Wire yield strength Mpa
Wire tensile strength Mpa
Weld strength Mpa
Certificates of testing of wire
Tolerance mesh aperture +/- 0.5mm
Weld shear strength compliance with AS2423
Wire tensile strength compliance with AS2423
Wire diameter compliance with AS 2423 (+/- 0.08mm)
Wire zinc coating compliance with AS4534 Class W 10Z5A (minimum mass of 265 g/m2)

Testing of Steel Posts
Yield strength Mpa
Tensile strength Mpa
Steel classification for post
Hardness test result
Certificates of testing of post
Galvanising
Galvanised of post and rail after fabrication
Galvanising coating weight on the posts and rails
Galvanising in compliance with AS4680:2006 or BS equivalent
Short barb concertina (razor tape)

Technical Details:
Tensile strength Mpa
Galvanised coating
Core wire material detail and zinc coating mass
Barb tape material detail and zinc coating mass
Powder coating
Preparation of surface for powder coating
Chemical pre-treatment process
General
Detail drawing of product

Installation of 358 Secure Mesh Panels with Square Section Steel Fence Posts:

Metal steel posts powder coated for anchor bolts fixing provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust. Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplated for fixing to a concrete base, and/or cranked to receive another panel or for razor wire.

Fixing with Continuous Clamp Bar

The most secure method of securing fence panels to posts. A continuous 40 x 6mm flat bar clamps the mesh panel to the post, using Galvanised M8 Bolts which pass through the posts and are secured from the inside of the fence by means of anti-vandal and tamper resistant Permacone Nut.

Uses:
358 security net has small apertures making it extremely difficult to cut the wires and impossible to climb. It is popularly used in Australia, American, UK and other countries for fencing system and animal enclosure uses. The metal wire mesh welded sheet is also used for fabricating animal cages for example, rabbit cages.

Features:

High rigidity
The Secure-mesh panel is made of low carbon wire and its diameters is 4-6mm with tightening folds according to the height of panel.

High protection against corrosion
Secure-mesh fence is a welded mesh panel made of galvanized & powder-coated steel wires. The Long Life Technology powder-coating process guarantees a long life span and a reliable protection against corrosion.

Complete system
358 secure mesh fencing is supplied as a complete system with panels, posts and gates - stepped panels available to suit sloping sites.

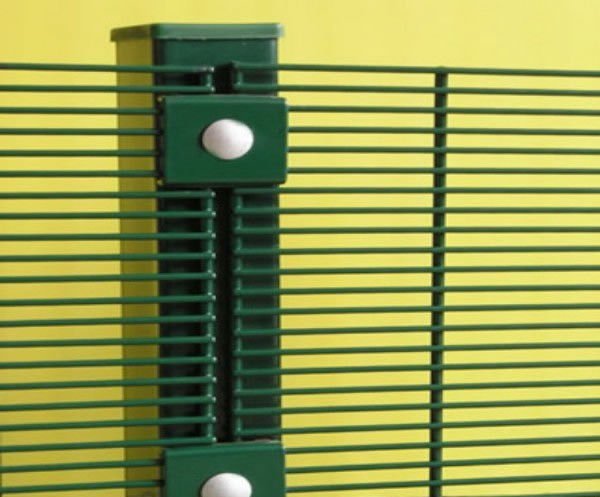

Green Powder Coated Fence Posts for 358 Secure Mesh Panels Installation

Steel Tubular Posts

Also Supply:

Stainless Steel High Security Mesh, Hot Dipped Galvanised Finish and Powder coated Finish security mesh net products.
