Heavy Hot Dipped Galvanized 358 Mesh High Security Fence with Y Profile Post Making Anti Climbing and Anti Cutting Barriers



358 security fence is made of close rectangular opening welded mesh with finger proof aperture. 358 Welded Mesh is usually used with concertina ( razor wire ) for high security fencing uses. Supported by Y profile steel posts. The fencing system is heavy hot dipped galvanized and pvc coated to RAL standard colors.

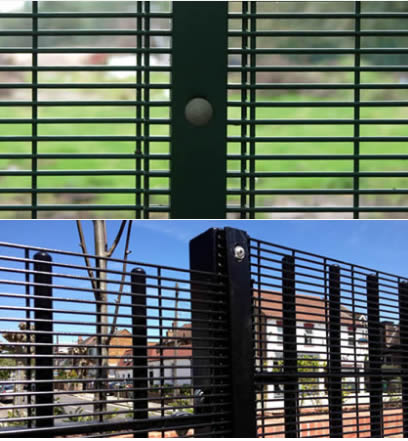

Green PVC Coated Steel 358 Mesh High Security Fencing:

Specifications:
Wire diameter before PVC Coating: 4.0mm
Mesh:76.2X12.7mm
Height X Length: 2.5X2.5m
Post (Y profile): 60X80X3.0mmX3.7m
Surface finish:Hot dipped galvanized and PVC Coated
Include its accessories
Color:Green


• Heights: 1.8m, 2m, 2.4m, 2.7m, 3.0m, 4.0m,4.2m,4.8m, 5.2m
• Horizontal Wires: 4mm @ 12.7mm centres
• Vertical Wires: 4mm @ 76.2mm centres

Note:
One set includes one fence panel, one post and its accessories.
Colour range choices: Green (RAL 6005) , Black (RAL 9005), Gentian Blue (RAL 5010) Sapphire Blue (RAL 5003), Flame Red (RAL 3000), Wine Red (RAL 3005), Traffic Grey (RAL 7042), etc.

Anti Climb and Anti Cut Welded Mesh Panels



358 Welded Mesh with Posts and Fixing System

358 Anti-Climb Mesh Panels with Green Powder Coating

Security Mesh Perimeter Fencing Barrier

Black PVC Coated Galvanized Wire Mesh Fence

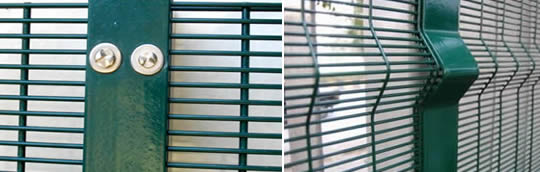

2D Double wire 358 fence Or 3D Curvy Welded 358 Mesh Fence

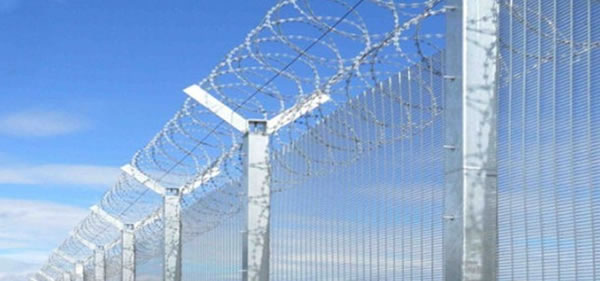

Y  Post for 358 Mesh Fence

Y Post for 358 Mesh Fence



Advantages of 358 Fence compared with Chain Link Fence

'358' comes from its measurements 3" x 0.5" x 8 gauge which equates to approx. 76.2mm x 12.7mm x 4mm in metric. It is a professional welded mesh structure designed for high security environments, combined with an steel framework, coated with heavily zinc or RAL coulor Powder coating.

Comparing with chain link fence, 358 security fence is a special fencing panel offers more small openings, no toe or finger holds. 358 Mesh has robust wire and welded joints make cutting very difficult. The flat and two-dimensional profile is easier to see through than chain link.

Concertina Razor wire: Hot dipped galvanized steel razor blade coils.

358 Mesh High Security Fence Panels and Posts:

panels Posts
Fence Panel size Post Size Post Height Total number of clamps
Height Height/ Width Length/ Width/ Thickness   1 Inters Post 2 Corners Posts
m mm mm   mm
2.0 2007 x 2515 60 x60 x2.5mm 2700 7 14
2.4 2400 × 2515 60 x60 x2.5mm 3100 9 18
3.0 2997 x 2515 80 x80 x2.5mm 3800 11 22
3.3 3302 x 2515 80 x80 x2.5mm 4200 12 24
3.6 3607 x 2515 100 x60 x3mm 4500 13  26
3.6 3607 x 2515 100 x100 x3mm 4500  13 26
4.2 4204 x 2515 100 x100 x4mm 5200 15 30
4.5 4496 x 2515 100 x100 x5mm 5500 16 32
5.2 5207 x 2515 120 x120 x5mm 6200 18 36



Benefits:

(1)Secure and discreet
A superior system for providing security where a discreet visual impact on the immediate environment is essential.

(2)Vandal resistant
The finger proof aperture combined with 4mm wire diameter provides a barrier that is difficult to climb or penetrate. Almost impossible to cut wires by use of conventional bolt or wire cutters.

(3)Efficient deterrence
An effective deterrent to intruders available in various heights up to 6m. Compatible with electronic detection and alarm systems.

(4)Good viewing visibility
In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.

(5)Durability
The high quality advanced coating technology guarantees an extended product life span and low maintenance.

(6)Installation
The panels are produced at 3.050 m, reducing the amount of posts needed by 20%. Installation time is thus reduced.

(7)Weld Strength
The superior welding technique and process control create a stronger fusion between the wires.

(8) Sharp Topping
The blade profile razor wire along the top of the fence panels makes it extremely difficult to climb or penetrate.
