Chain Link Fence and Accessories

We can offer galvanized iron chain link fence and plastic-coated iron chain link fence. Fitted with steel posts, chain link gates and accessories.

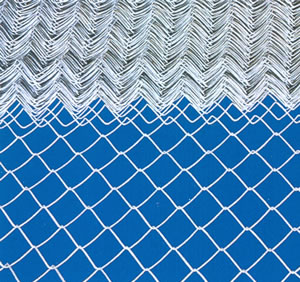

Galvanized Steel Mesh Rolls Chain Link Fence

Metallic coatings for Galvanized Chain Link Fence Fabrics (cold electro galvanized or hot dipped galvanized) are standard. Galvanized steel chain link fence are made with wires pregalvanized. The wires are galvanized and the minimum zinc weight for horizontal wires is 275 g/m2 and for the vertical wires is 290 g/m2. With zinc protective layer, the gal. steel fence offers a good acid and alkaline resistance and is suitable for outdoor fencing uses against weather and sunshine. We offer fence fabrics and matching posts to complete the fencing system. The fence posts are also made of carbon steel treated with galvanizing coating layer. Posts types include peach post, square post, Holland posts. Galvanized chain link can also be used as decorative mesh in modern buildings.

Why Galvanized Steel Chain Link Fence a universal fencing?
Galvanized steel chain link fence is supplied in mesh rolls.Galvanized chain link fence is the most popular and economic cost type. Other types of chain link costs higher due to more processing steps involved ( for example, the plastic coated chain link fence needs additional plastic coating besides galvanizing) and materials cost ( for example, stainless steel costs much higher compared with mild steel wire applied for the galvanized steel chain link mesh).

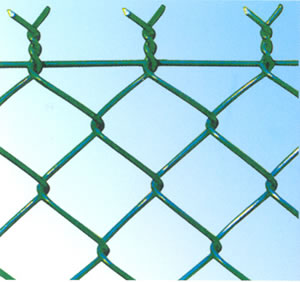

So, if you emphasize on colors, plastic coated chain link fence is your best choice for it can be painted freely to many colors.

Stainless steel chain link fence come to the application of high grade fencing and maintaining free sites;

Low carbon steel diamond mesh has a heavy galvanized coating to ensure a long life. Galvanized fence is chosen for its zinc protective property, economic cost and bright shine surface.

Features:
Steel wire mesh fencing provides an aesthetically pleasing yet strong barrier. Each fence panel is produced by an automatic hooking woven process. The simple, clean lines are particularly suitable for both prestige and security applications including residential, sports, leisure and industrial uses. Woven diamond pattern provides strong, durable and flexible construction.

Epoxy Coated Wire Mesh Temporary Fencing    Rhombic Opening Steel Mesh Flexible Structure Hot Dipped Galvanised

Specifications:

Aperture: 50*50mm, 60*60mm

Wire Diameter: 3.0mm, 4.0mm or 5.0mm

Mesh Size (H*W):1800*2500mm or 2000*3000mm
Roll length: 0.5-50m
Roll width: 0.5-3m

Post and Mesh: Galvanized/powder coating/PVC coated

Installation: Pre-buried or Screw Fixing

Surface treatment: Electric galvanized, hot dipped galvanized, pvc coated.

Processing of Chain Link Fence Fabrics and Posts:

Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting → Weaving in Rhombic Opening → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing →  PVC Coating /Spraying → Packing → Loading

Fence Post Process: Raw Material → Cutting → Hole Drilling → Electro Galvanizing/Hot-dipped Galvanizing → Sandblasting → PVC Coating/Spraying → Packing → Loading
