Palisade Fence Hot Dipped Galvanised W Profile Single Spike for Perimeter Fencing Uses

Palisade fence is a general fencing spike for industrial and residential safety perimeter barrier uses. We offer mainly three types of pales: "W" profile, "D" profile and angle iron. The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span. W profile is the most popular type of palisade perimeter fencing. Head profiles include Round and Notched or Triple Pointed.

We offer following styles, according to customer requirements:

  • Galvanized or PVC Coated Steel Palisade Fence
  • Steel Palisade Fence Decorative Garden Use
  • Wrought Iron Steel Palisade Panel Security Fence
  • Wrought Iron W Palisade Fencing Panels
  • Heavy Duty Steel Palisade Secure Fencing Hot Dip Galvanised

Palisade is formed by Q235 low carbon cold drawn steel wire, or wrought iron materials. It is 1.8m high and 2.5m wide. And been anti-corrosion treatment by electro galvanized, hot dipped galvanized, PVC coated, PE coated or stainless steel wire, etc. Especially PVC coated Palisade is economical, durable, strong corrosion resistance and service time more than 10 years.

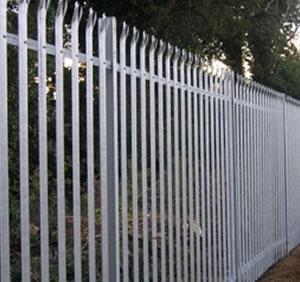

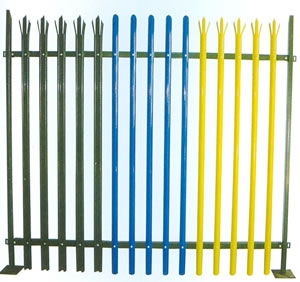

W profile palisade fencing    Decorative Garden Fencing

Types of pales:

Pales-"W" section is most useful vetical type of pales for palisade fencing, which is always the customers' first choice for pales.

Width: 68mm - 70mm
Thickness: 2.0mm, 2.5mm, 3.0mm
Surface Treatment: Galvanized and electrostatic polyester coated or Hot dipped galvanized
Head: Single point, Triple point
Height: 1200mm - 3000mm

Pales-"D" section: Compared with "W" profile pales, "D" profile is more economical cost.


Pale-Angle iron: Simpler structure than than "D" profile, while cost similar with D.
Width: 40x40
Thickness: 2.0mm, 3.0mm
Surface Treatment:  Galvanized and Electrostatic polyester coated or Hot dipped galvanized

Types of Post:

Post- IPE Type: As a connection pipe between the fence panels, IPE type is the most useful way.

 Size:

100x55mm
100x68mm
120x74mm

3.5mm
4.0mm
4.5mm
5.0mm


Rail- Angle Iron Post:
It is the connection between pales and IPE post, which make the fence as a whole panel.
With19 holes drilled on one edge side

Palisade Fence Panels Specifications:

STANDARD HEIGHT PALE SECTION HEAD PROFILE
1.2M 3.0mm "D" ROUNDED & NOTCHED
1.5M 3.0mm "D" ROUNDED & NOTCHED
1.8M 3.0mm "D" ROUNDED & NOTCHED
1.8M 3.0mm "D" TRIPLE POINTED
1.8M 2.0mm "W" TRIPLE POINTED
2.0M 3.0mm "D" ROUNDED & NOTCHED
2.0M 3.0mm "D" TRIPLE POINTED
2.0M 2.0mm "W" TRIPLE POINTED
2.1M 3.0mm "D" TRIPLE POINTED
2.1M 2.0mm "W" TRIPLE POINTED
2.4M 3.0mm "D" TRIPLE POINTED
2.4M 3.0mm "D" ROUNDED & NOTCHED
2.4M 2.0mm "W" TRIPLE POINTED
2.4M 2.5mm "W" TRIPLE POINTED
3.0M 3.0mm "D" TRIPLE POINTED
